Brewery Grain Handling – Tip in Stations and Conveyors
Design, Supply, Install and Commission a pair of Tip in Hoppers with Conveying Systems that work into the existing brewery grain intake layout.These two systems take the grain from tip in hoppers to their required destinations at the Brewery.
System 1 has a vacuum conveying system to move the grain from a Rotary Valve on the tip in station to a batching hopper with WAMFlo Dust Collector.
- System 1 – SS304 Tip in Hopper with Outlet to Torex RV02 Rotary Valve.
- System 1 – Vacuum Conveying System to Load the grain into a pre-hopper above the mill
System 2 has a twin inlet WAM Horizontal Screw Conveyor with Vertical Screw Conveyor Combo allowing grain to be conveyed from the mill to the Grist Bin or grains to be added to the grist bin which bypass the mill.

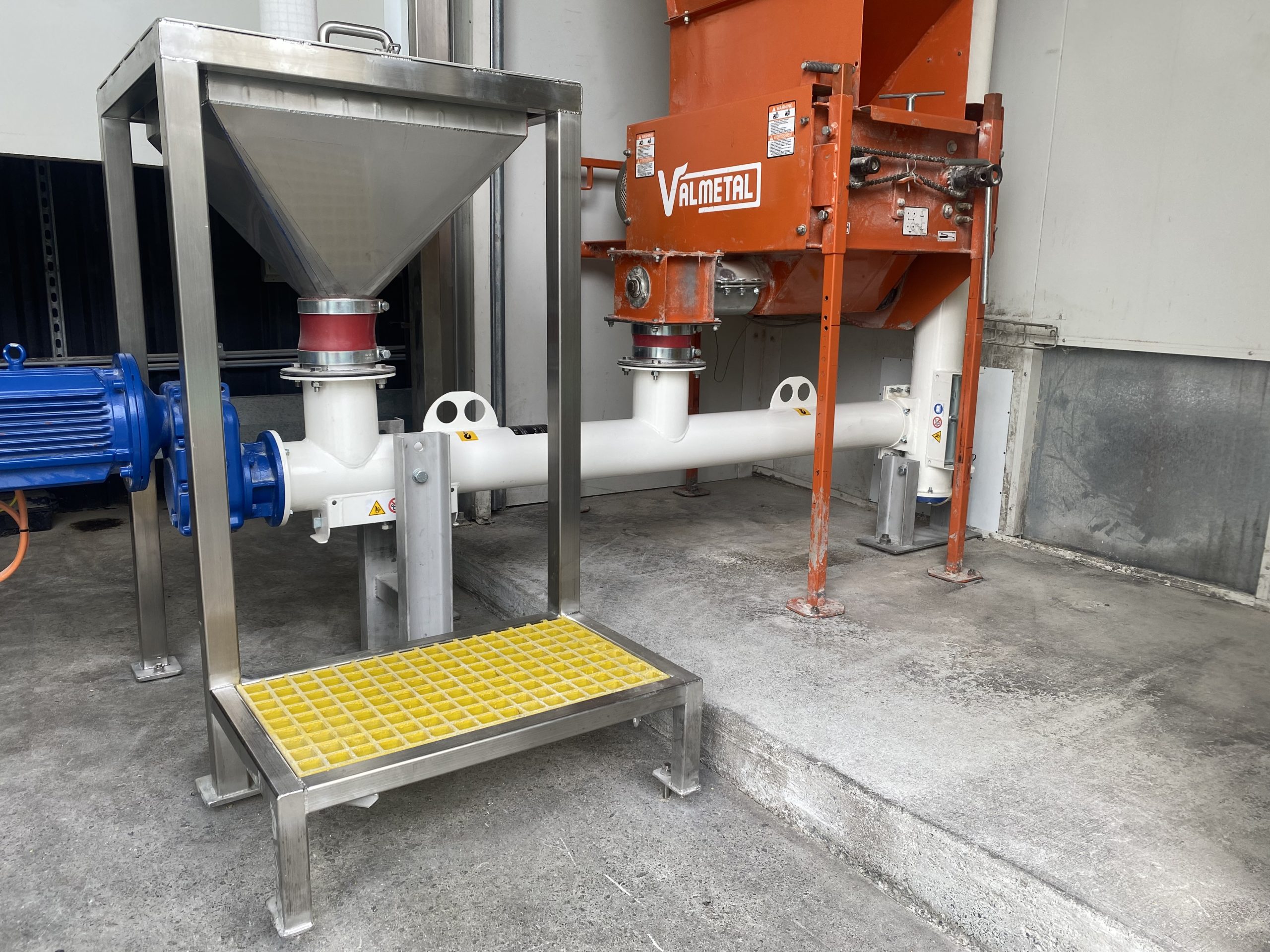

- System 2 – SS304 Tip in Hopper with Outlet to AT Screw Conveyor
- System 2 – AT-VE Screw Conveyor Systems 2m across and 4.5m tall. Twin inlet on the Horizontal Screw Conveyor (Inlet A from Tip in Hopper, Inlet B from Mill outlet).
The Inlet A is used for oats and other grains that need to bypass the mill
