Stainless Steel Bin Vibrators

The Oli Stainless Steel Bin Vibrators for are for use in corrosive or hygienic areas with IP66 protection. Stainless Steel Vibrator Shaker

Stainless Steel Vibrators

    • Vibratory Force (centrifugal force) output from 20kg to 20Kg to 26,000Kg through a range of over 50 different model variants.
    • Ex II3D and ETL, Class II, Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.
    • Vacuum-impregnated windings using Class F insulating materials.
    • Selected models available with IECEX Vibrator certification.
    • Corrosion Resistant
    • Stainless Steel Build
    • Smooth Body Shape
    • Water and Moisture Proof
    • Terminal Box Protection

Open Stainless Steel Vibrators Brochure

Open Stainless Steel Vibrators Datasheet



WAM VIB Thin Slide Gate Valve

The new WAM VIB Thin Slide Gate Valve is a low profile cost effective solution for isolating powders and granular materials in hoppers, bins and silos.

The thin valve consists of two high pressure die-cast semi-bodies manufactured from aluminium alloy, a sliding blade in carbon or stainless steel, a carbon or stainless steel frame with polymer seal. The use of SINT engineering polymer seal considerably reduces the abrasion wear compared to traditional valves. For the food industry they come in a version with stainless steel blade and frame, as well as food-grade seal.
WAM VIBQ Thin Valve WAM VIBQ Thin Slide Gate Valve

  • Dust Proof Sealing.
  • Available in multiple sizes including 150, 200, 250, 300, 350 and 400mm.
  • 75mm Flange to Flange (Low Profile)
  • Available with Handwheel Actuation, Pneumatic Actuation or Electro-motor actuation.
  • Ready to use for horizontal or vertical mounting.

Open VIB Low Profile Slide Gate Valve Brochure

Open WAM VIB Thin Slide Gate Valve Brochure



Hepa Filter Air Intake Box

The Filquip Hepa Filter air intake box is the ideal solution for providing clean air into your plant equipment process.

Developed for Fan and Vacuum Conveying intakes in industrial food processing plants the housing box is made from Stainless Steel with a pre-fitted outlet pipe spigot as requested by the customer.

Hepa Filter Air Intake Box

The Filquip Hepa box system comes with:

  • Air Intake box in 304 or 316 Stainless Steel
  • A premium washable V-form pre-filter (Rated resistance 65Pa up to a maximum 3400 m3/hr airflow)
  • AstroCel 3 Hepa Filter H13 (Rated resistance 250Pa up to a maximum 4000 m3/hr airflow)
  • This pre-filter and hepa-filter system provides an extended life with greater than 99.99% Efficiency at 0.3 Micron.

New Filquip Portable Vacuum Conveyor – FVC

Filquip has worked with the Coffee Roasting and Calcium Powders industries to develop a Mobile Vacuum Conveyor with wand piece to allow staff to suck powders and granules from the bags and lift them up into their equipment.

The FVC mobile vacuum conveyor can lift almost any powder or granule product from bags or containers using the vacuum wand and lift it up into equipment such as roasters, hoppers and mixers.

Many processes involve staff lifting heavy bags or drums of powder or granules into equipment.  This exposes them to physical injury through incorrect lifting techniques or just lifting things that are too heavy.  One of the easiest ways to mitigate this risk is to use vacuum conveying to lift the powder or granules up into the equipment.

Portable Vacuum Conveyor

Coffee Vacuum Lifting Conveyor

  • Manufactured from polished 304 stainless steel.
  • Food grade suction hose (Suitable for food and pharmaceutical industries).
  • The unit comes on lockable wheels for mobility around the facility.
  • The unit comes complete with in-built reverse pulse cleaning.
  • Simple control panel provided for ease of operator use.
  • Discharge height up to 2m.
  • Nominal throughput up to 6m3/hr for the largest models.
  • Available in Single Phase, Three Phase and Pneumatic motor configurations.

Open FVC Portable Vacuum Conveyor Brochure

Eurac Borosilicate Glass Pipes and Bends

The new Eurac Borosilicate Glass Pipes and Bends come in a wide range of diameters. The transparency of the borosilicate glass allows simple visual checks of the material flowing through the pipes or bends. With Electrostatic Protection from its Copper Conductive Strip and Food Grade properties (think Pyrex Glass) they are well suited to a large range of products.  Cleat Pipes

  • Borosilicate Glass has up to 10 times the abrasion resistance of Stainless Steel.
  • Available in multiple tube and pipe diameters including 38, 40, 45, 50, 60, 63.5, 65, 70, 76, 80, 84, 88.9, 101.6, 104 and 114mm. Non stocked sizes are available on special order.
  • Standard stocked sizes are sized to suit 2″, 2.5″, 3″ and 4″ Tube.
  • Available in Straight Lengths or 90 Deg Bends.

Open Eurac Borosilicate Glass Pipes and Bends

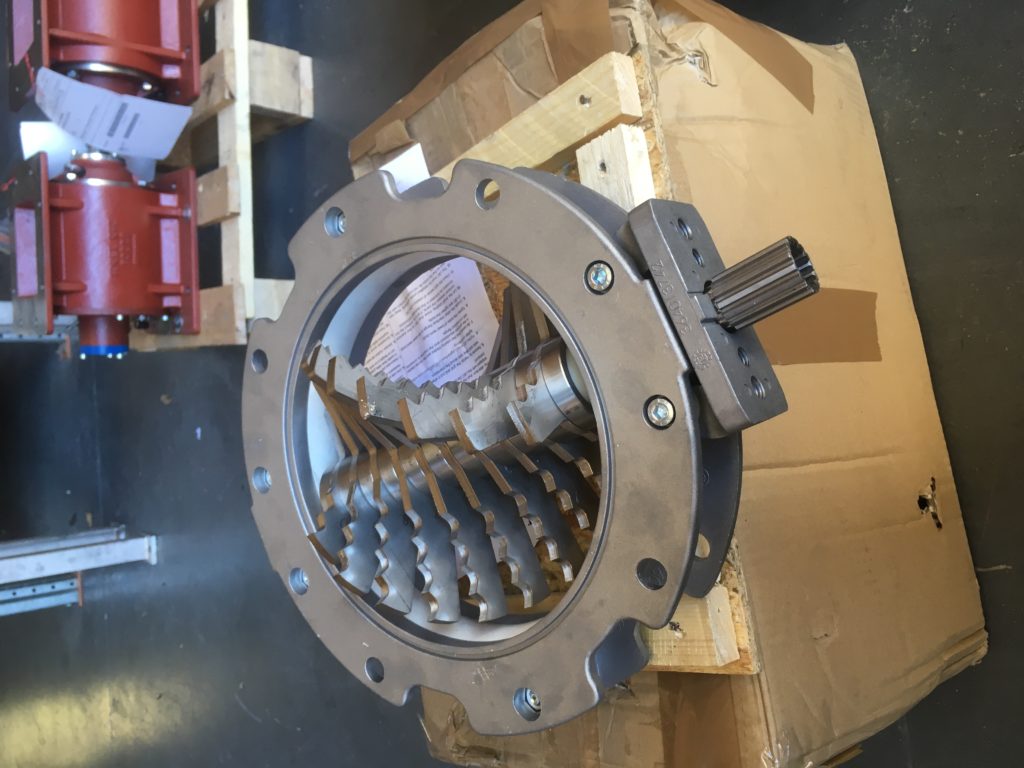

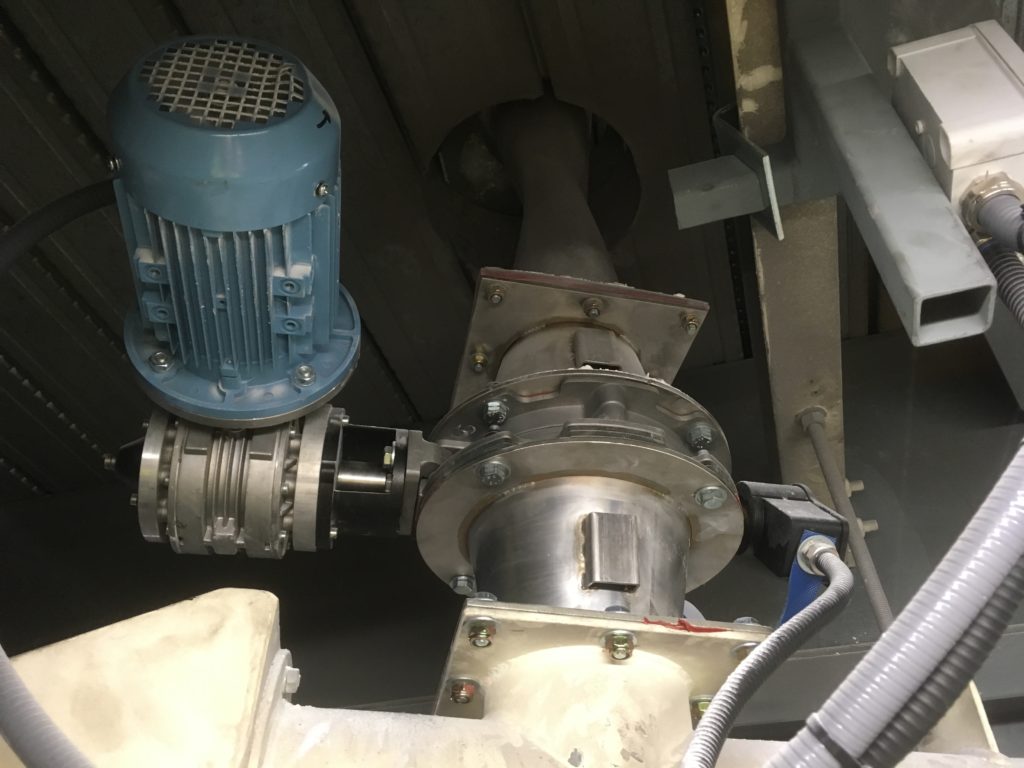

WAM Low Profile Circular Lump Breaker

The new WAM LBC Circular Lump Breaker is a low profile cost effective solution to clumps and lumps in powders and granular materials.

  • Circular Lump Breaker body manufactured in Aluminium Alloy and available with Stainless Steel or Mild Steel Blades.
  • Available in multiple diameters including 200, 250, 300, 350 and 400mm.
  • 75mm Flange to Flange (Low Profile)
  • Comes with Gearbox and Motor

Circular Lump Breaker      Circular Lump Breaker

New Dense Phase Conveying Brochure

Filquip has a new Dense Phase Conveying Brochure detailing the Sand Conveyingadvantages of a Dense Phase Conveying system for materials handling.

Detailing the different models that can be provided to convey almost any product at flow rates up to 100T/h and distances up to 500m. Dense phase systems are perfect for conveying hard to handle products and can be filled from Bulk Bag Unloaders, Silo’s, Hoppers, Chutes, Screw Conveyors and most other filling equipment types.

Some of the advantages include:

  • High product conveyed to Air used ratio = Energy saving and cost saving
  • Less moving parts = Reduced maintenance and costs
  • Lower velocity conveying = Lower pipeline wear = Reduced maintenance and costs
  • High Internal cleaning = Increased efficiency
  • Completely closed system = Increased safety
  • Reduced product stratification and impacts = Perfect for fragile and mixed materials

Open the Filquip Dense Phase Conveying Brochure

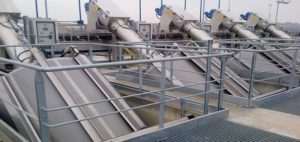

Savi Water Treatment Equipment Australia

Filquip is proud to represent Savi Water Treatment Equipment in Queensland, Australia.

The Savi range includes:

  • Rotating Drum Screens (Pre-MBR and Standard)Savi Australia
  • Screenings Washer Compactors
  • Grit Classifiers
  • Septage Recieval Stations
  • Pista Grit Circular Traps
  • Belt Screens
  • Step Screens
  • Mechanical Bar Screens
  • Band Screens
  • Sludge Thickeners
  • Travelling Bridges
  • Clarifier Bridges
  • Overflow Spillways
  • Penstocks
  • Sand Washers

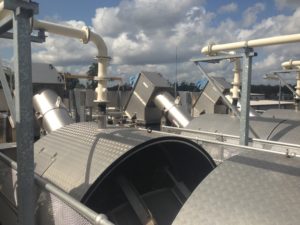

The Savi Pre-MBR Rotating Drum Screen is the standard for solids capture to protect the plant membrane bio reactor, with over 15 operating screens across Australia and New Zealand.

Open Savi / WAM Water Equipment Brochure

Go to Filquip Page for Water and Waste Water Treatment Equipment

Silo Overfill Protection System – New Website Page

Filquip has a new Silo Overfill Protection Website page and Brochure available now.Overfill Protection Control PanelSilo Overfill protection Ducting to Ground

The Filquip overfill protection silo safety system consists of all the required items for ensuring the silo being filled cannot be over pressurized or overfilled and eliminates dust emissions:

  • Control panel – Available with key control to ensure the correct product is filled into the correct silo and with the ability to manage multiple silos.
  • Pinch valves – Controls and isolates different silo fill lines.
  • High level indicator – Provides feedback when the silo has reached a pre-set high level.
  • Differential pressure switch or electronic pressure meter – Measure in silo pressure.
  • Pressure Relief Valve (PRV) – Safety valve to release excess pressure in silo.
  • Dust collector – Venting of excess air without any dust emissions.
  • Ducting kit to vent to ground – Ducting from the PRV and Dust Collector to ground.
  • Wear bends/elbows – Abrasion resistant pipe bends and elbows for the silo filling lines.
  • Pneumatic fittings – Air regulators, fittings and airline required for pneumatic plumbing.

Open new Overfill Protection Webpage

IP Pressure Sensors for Tanker filled silos

Pressure Sensors for Tanker filled silosFilquip is proud to supply the Torex IPE Electronic Pressure Meter and IPM Mechanical Pressure Meter for monitoring of the pressure inside bins or silos during their filling from tankers and specifically during the purging of then tanker truck.

  • The pressure sensor membrane is self-cleaning and temperature resistant
  • The casing is aluminium alloy with IP55 protection rating.
  • Available with 4-20 mA output signal configurations for the IPE.
  • 24VDC supply voltage.
  • IPX mounting spigot available for simple installation onto any silo

If your installing a new truck or tanker filled silo storage system or upgrading an existing silo system then the IPE/IPM Pressure meter is a key component for managing over pressurisation before the relief valve is activated, thus avoiding any emissions to the surroundings.

Open Torex IPE Pressure Sensor Brochure
