Filquip has been providing conveying equipment systems for over 17 years for all types of powders and granular materials. Filquip represents Roncuzzi Bucket Elevators who have been manufacturing high quality bulk materials handling equipment for over 130 years.
Heavy Duty Bucket Elevators – EHN
Filquip supplies the EHN Heavy Duty Bucket Elevator for the conveying of aggregates, minerals, granular chips or pellets in continuous heavy duty applications. They are designed to operate at low speed.
Heavy-duty buckets manufactured from abrasion-resistant mild steel which offers extended durability for the highly abrasive materials handled. The wide range of options and accessories enable a great variety of applications for EHN-type Bucket Elevators, providing highly efficient state-of-the-art performance.
- Available in Carbon steel, Stainless steel 304 & 316.
- Throughput rates up to 310m³ / hr.
- Discharge heights up to 60m tall.
- Material operating temperatures up to 180°C.
- Hazardous Zone Versions are available
Open Bucket Elevators Brochure

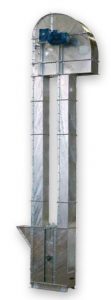

Powder Bucket Elevators – EI
Filquip supplies the EI Bucket Elevator for the vertical conveying of dry powders and fine aggregates up to 5mm in particle size.
The particular design of the buckets manufactured from abrasion-resistant Nylon PA6 or mild steel offers extended durability for abrasive materials handled.
The wide range of options and accessories enable a great variety of applications of EI-type Bucket Elevators providing highly efficient state-of-the-art performance in compliance with the relevant standards.
- Available in Hot Galvanised Carbon steel, Stainless steel 304 & 316.
- Throughput rates up to 500m³ / hr.
- Discharge heights up to 44m tall.
- Material operating temperatures up to 180°C.
- Hazardous Zone Versions are available
Open EI Bucket Elevators Brochure

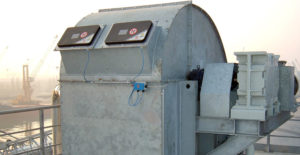

High Capacity Bucket Elevators – EF & EC
Filquip supplies the EF and EC Bucket Elevators for the high capacity vertical conveying of flour, cereals and other similar products.
The use of antistatic, oil-repellent, self-extinguishing belts, along with buckets manufactured from high-density polyethylene (HDPE), as well as the presence of anti-skid belt sensors, as well as rotation and control sensors provide highly efficient state-of-the-art performance in compliance with the relevant standards.
- Available in Hot Galvanised Carbon steel, Stainless steel 304 & 316.
- Throughput rates up to 1,200m³ / hr.
- Discharge heights up to 44m tall.
- Material operating temperatures up to 180°C.
- Hazardous Zone Versions are available
Open Bucket Elevators Brochure
